| Marca: |
Hikvision
|
| Modelo: |

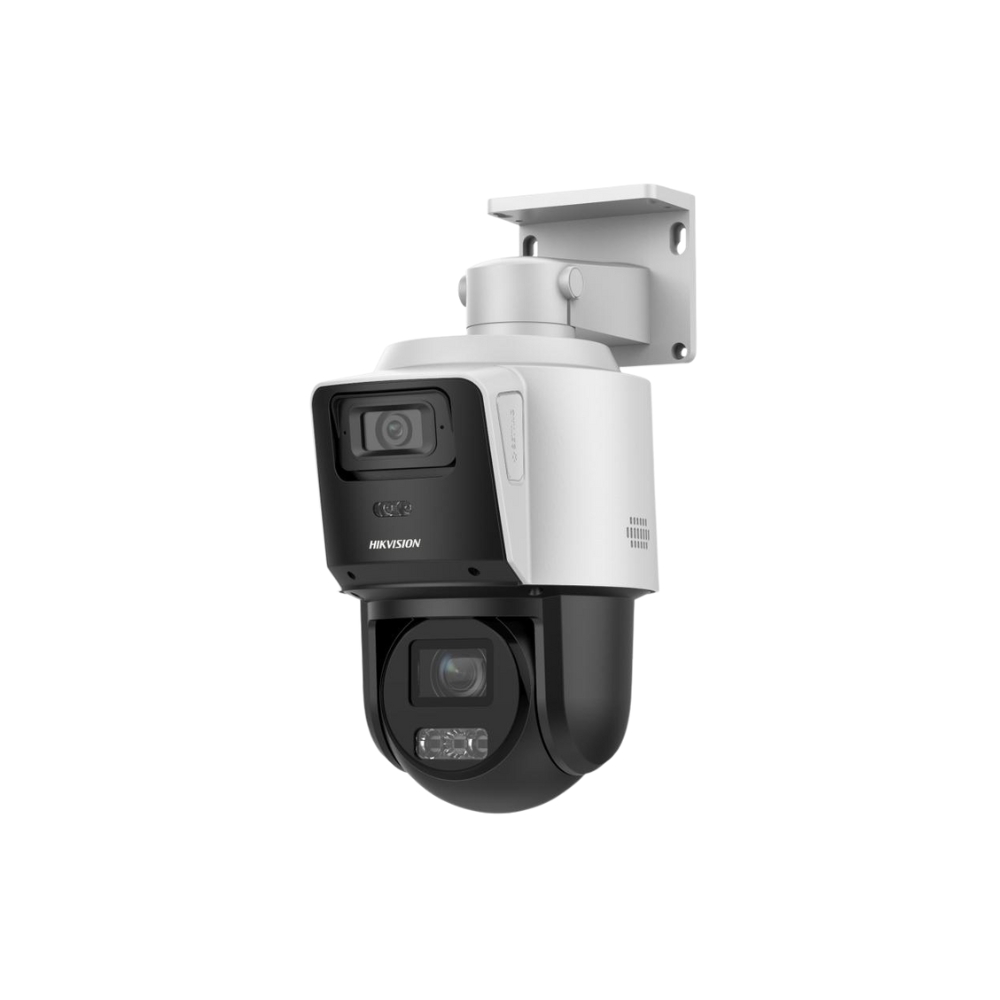

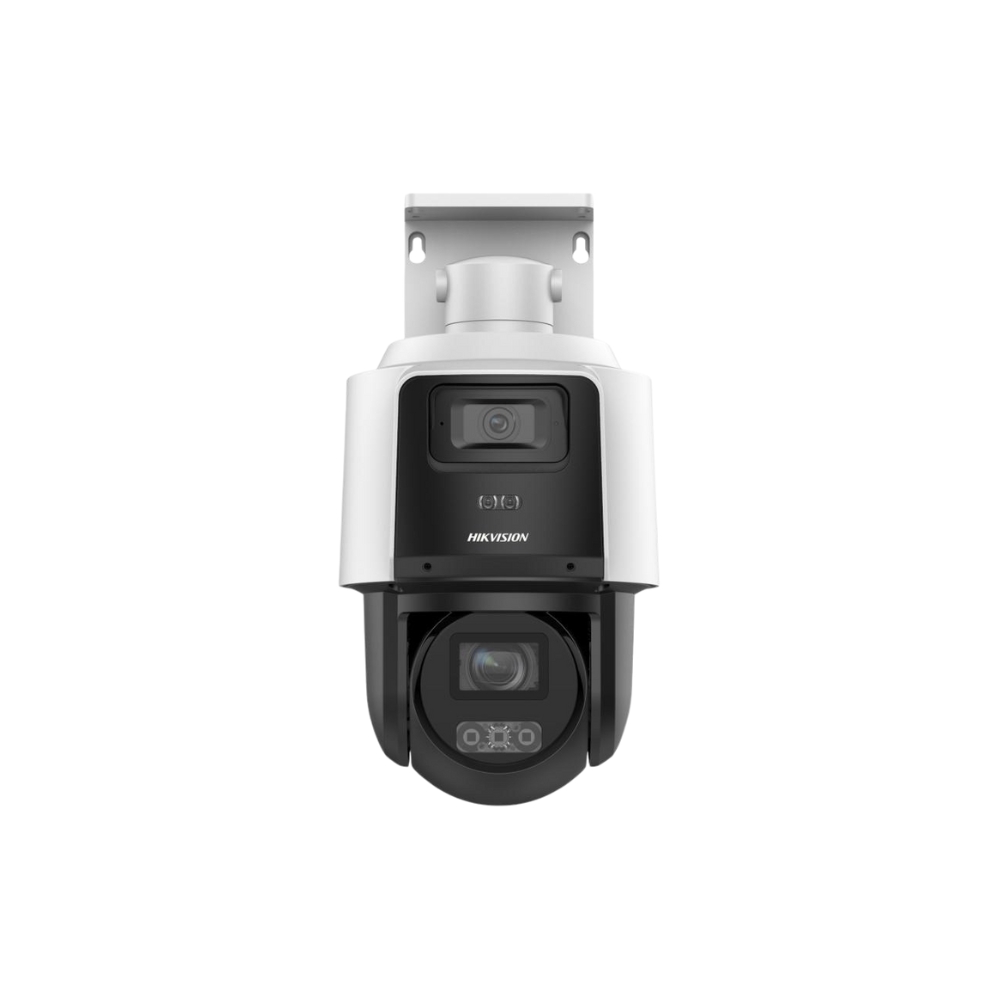

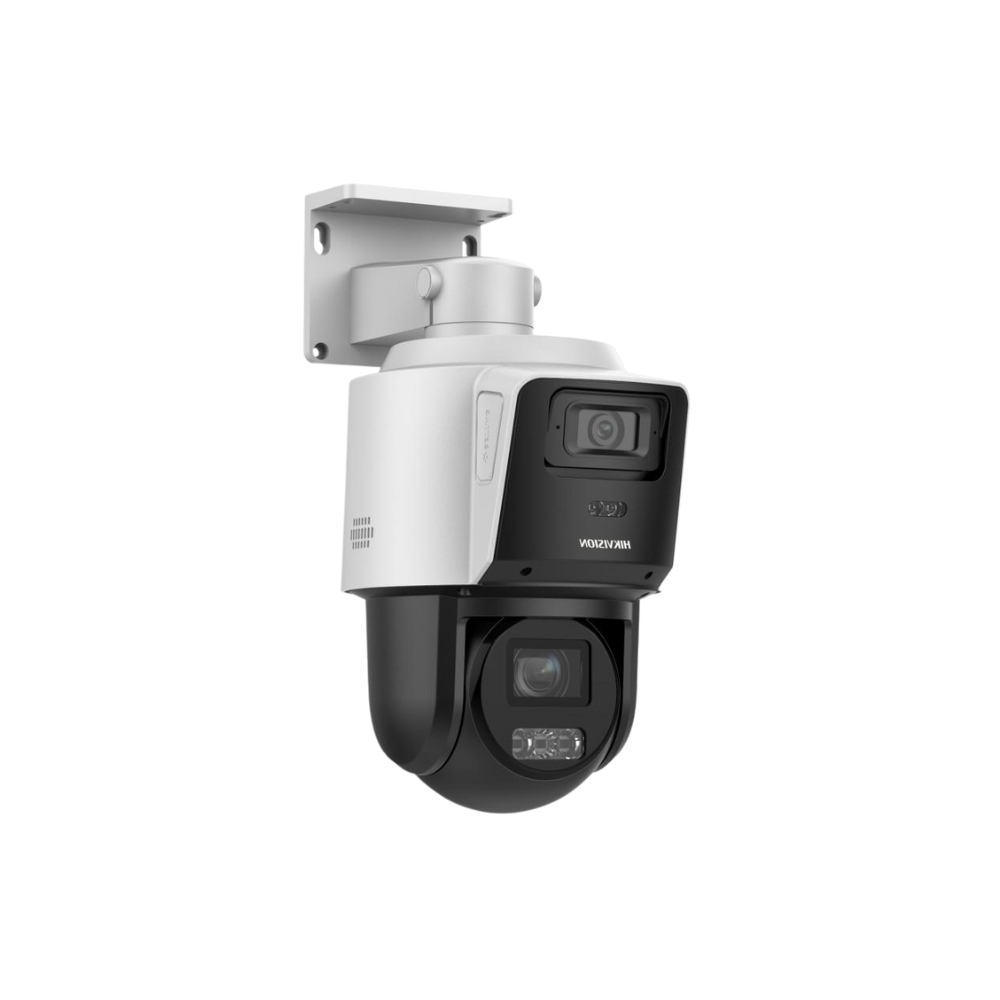

HK-DS-2SE3C204MWG-E12
|
| Cámara: |
Sensor de imagen: [Bullet channel]: 1/2.8" Progressive Scan CMOS; [PTZ channel]: 1/2.8" progressive scan CMOS
Iluminación mínima: [Bullet channel]: Color: 0.03 Lux @ (F2.0, AGC ON), B/W: 0.01 Lux @ (F2.0，AGC ON), 0 Lux with IR; [PTZ channel]: Color: 0.01 Lux @ (F1.5, AGC ON), B/W: 0.005Lux @ (F1.5, AGC ON)，0 Lux with IR;
Velocidad de obturación: 1 s to 1/30,000 s
Obturador lento: yes
Día y Noche: ICR
Zoom: [PTZ channel] 4 × optical, 16 × digital
Max. Resolución: [Bullet channel] 1920 × 1080, [PTZ channel] 1920 × 1080
|
| Lente: |
Enfoque: auto,manual,semi-auto
Longitud focal: [Bullet channel]: 2.8 mm; [PTZ channel]: 2.8 to 12 mm, 4 × optical
Velocidad del Zoom: [PTZ channel]: approx. 3.3 s
FOV: [Bullet channel] horizontal field of view: 104.9°, vertical field of view: 57.9°, diagonal field of view: 122.8°, [PTZ channel] horizontal field of view: 92° to 33°, vertical field of view: 49° to 18.2°, diagonal field of view: 104° to 37.7°
Apertura: [Bullet channel] F2.0, [PTZ channel] F1.5 to F2.9
|
| Iluminador: |
Tipo de luz suplementaria: [Bullet channel] Hybrid (IR and White Light), [PTZ channel] IR
Luz de suplemento inteligente: Yes
Rango de luz suplementaria: [PTZ channel]: IR Distance: up to 40 m; [Bullet channel]: IR Distance: up to 30 m; White Light Distance: 30 m
|
| PTZ: |
Rango de movimiento (pan): 0° to 350°
Rango de movimiento (tilt): [Bullet channel] 7° to 17° (manually adjust), [PTZ channel] -5° to 90°
Velocidad de movimiento horizontal (pan): pan speed: configurable from 0.1° to 30°/s; preset speed: 30°/s
Velocidad de vertical (tilt): tilt speed: configurable from 0.1° to 30°/s, preset speed 30°/s
Proportional Pan: yes
Preajustes: 300
Escaneo de patrulla: 8 patrols, up to 32 presets for each patrol
Memoria de apagado: yes
Acción del parque: preset,patrol scan
Posicionamiento 3D: yes
Pantalla de estado de PTZ: yes
Congelación preestablecida: yes
Tarea programada: dome reboot,preset,patrol scan,dome adjust,aux output
|
| Vídeo: |
Región de interés (ROI): 1 fixed regions for main stream
Main stream: [Bullet channel]: 50 Hz: 25 fps (1920 × 1080, 1280 × 720); 60 Hz: 30 fps (1920 × 1080, 1280 × 720); [PTZ channel]: 50 Hz: 25 fps (1920 × 1080, 1280 × 720); 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-stream: [Bullet channel]:50 Hz: 25 fps (640 × 480, 640 × 360),60 Hz: 30 fps (640 × 480, 640 × 360); [PTZ channel]: 50 Hz: 25 fps (640 × 480, 640 × 360), 60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream: [Bullet channel]: 50 Hz: 25 fps (1280 × 720，640 × 480，640 × 360), 60 Hz: 30 fps (1280 × 720，640 × 480，640 × 360); [PTZ channel]: 50 Hz: 25 fps (1280 × 720，640 × 480，640 × 360), 60 Hz: 30 fps (1280 × 720，640 × 480，640 × 360)
Compresión de vídeo: H.265,H.264,MJPEG
Vídeo bitrate: 32 kbps to 16384 kbps
Tipo H.264: main profile,baseline profile,high profile
Tipo H.265: main profile
Codificación de video escalable (SVC): yes
|
| Audio: |
Compresión de audio: G.711,G.722.1,G.726,MP2L2,PCM,MP3,AAC
Velocidad de bits de audio: MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128; kbps, 144 kbps, 160 kbps; AAC : 16 kbps, 32 kbps, 64 kbps; MP3: 8 kbps, 16 kbps, 32; kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144; kbps, 160 kbps
Frecuencia de muestreo de audio: MP2L2: 16 kHz,AAC-LC: 16 kHz,PCM: 8 kHz,16 kHz,MP3: 8 kHz,16 kHz
Filtro de ruido ambiental: yes
|
| Red: |
API: ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
Almacenamiento en red: NAS (NFS, SMB/ CIFS), ANR
Protocolos: TCP/IP,SMTP,RTSP,FTP,WebSockets,IGMP,WebSocket,Qos,RTCP,HTTPS,PPPoE,SNMP,NTP,RTP,UDP,DNS,HTTP,DHCP,Bonjour,802.1x,IPv4/IPv6,DDNS,ICMP,UPnP
Vista en vivo simultánea: 20
Usuario/operador: 32
Seguridad: 802.1X authenticated access,MAC address binding,Authenticated username and password,IP address filter,HTTPS encryption
Cliente: iVMS-4200,Hik-Connect
Navegador web: IE 10+, Chrome 57+, Firefox 52+, Safari 12+
|
| Imagen: |
Configuración de imagen: sharpness, saturation, brightness, contrast
Wide Dynamic Range (WDR): 120 dB
SNR: ≥ 52 dB
Desempañar: Digital defog
Interruptor día/noche: day, night, auto, scheduled-switch
Image Stabilization: EIS
Mejora de la imagen: BLC,HLC,3D DNR
Máscara de privacidad: [Bullet channel] 24 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks
Enfoque regional: [Bullet channel] No, [PTZ channel] Yes
Exposición regional; [Bullet channel] No, [PTZ channel] Yes
Interruptor de parámetros de imagen: Yes
|
| Interfaz: |
Micrófono incorporado: 1 built-in microphone
Altavoz incorporado: 1 built-in speaker
Ethernet Interface: RJ45, self-adaptive 10M/100M Ethernet port
Almacenamiento a bordo: Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 512 GB
Reiniciar: yes
|
| Evento: |
Evento Básico: Motion detection,video tampering alarm,exception,alarm input and output
Evento inteligente: audio exception detection,region entrance detection,region exiting detection,intrusion detection,Line crossing detection
Linkage: [Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, and trigger recording, [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
|
| Linkage and Tracking: |
Smart Linkage:
[Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, and trigger recording, [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
|
| General: |
Función general: mirror,password protection,watermark,IP address filter
Alimentación: 12 VDC, max. 13.5 W,PoE+
Operating Condition: -30 °C to 50 °C (-22 °F to 122 °F). Humidity 95% or less (non-condensing)
Demista: Demist by heating the glass
Material: PC
Dimensión: 311.5 mm × 223.5 mm × 156 mm (12.26" × 8.80" × 6.14")
Peso: Approx. 1.37 kg (3.02 lb.)
|
| Certificación: |
Protección: IP66 Standard, Surge Protection and Voltage Transient Protection
|
